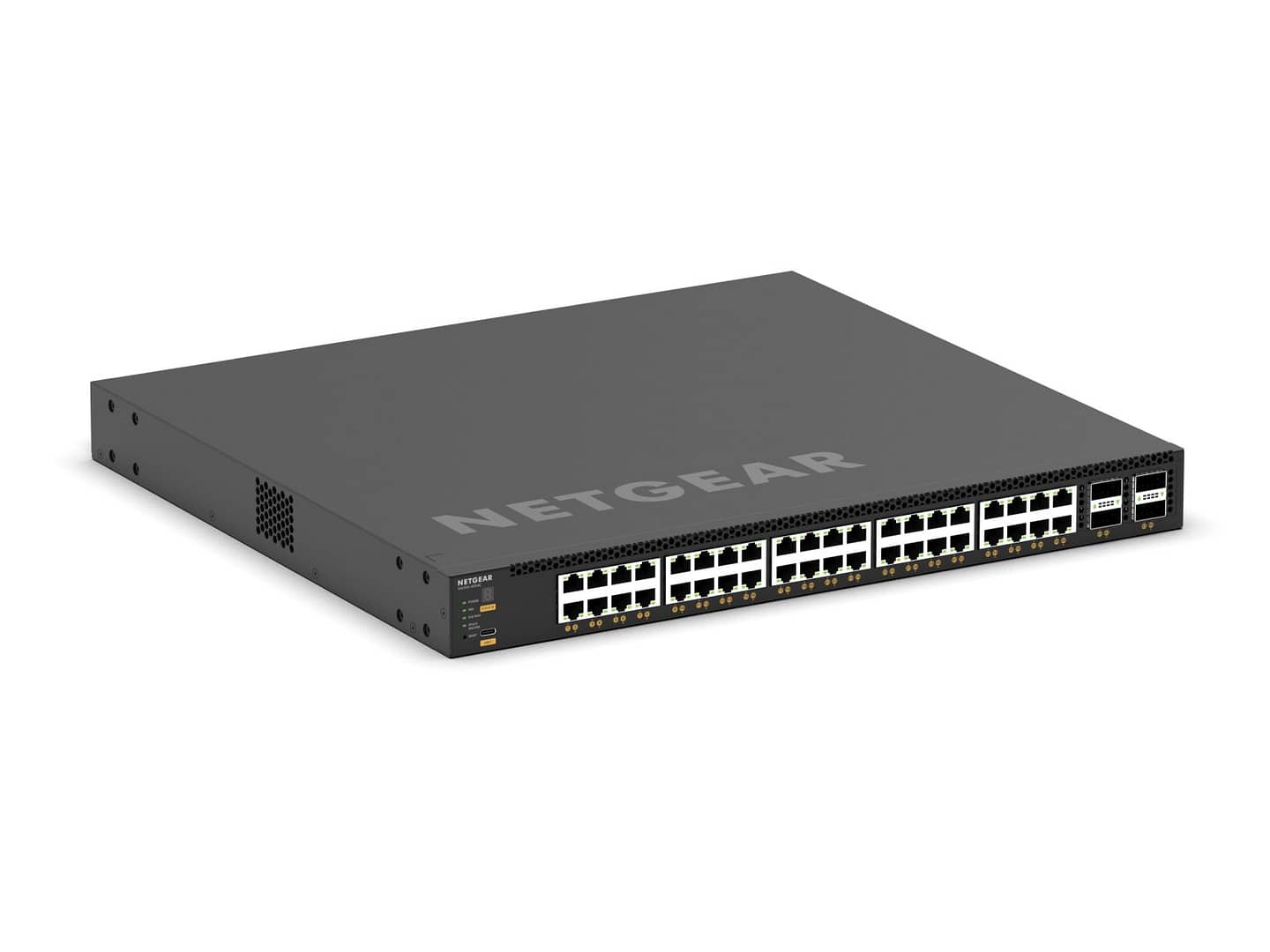

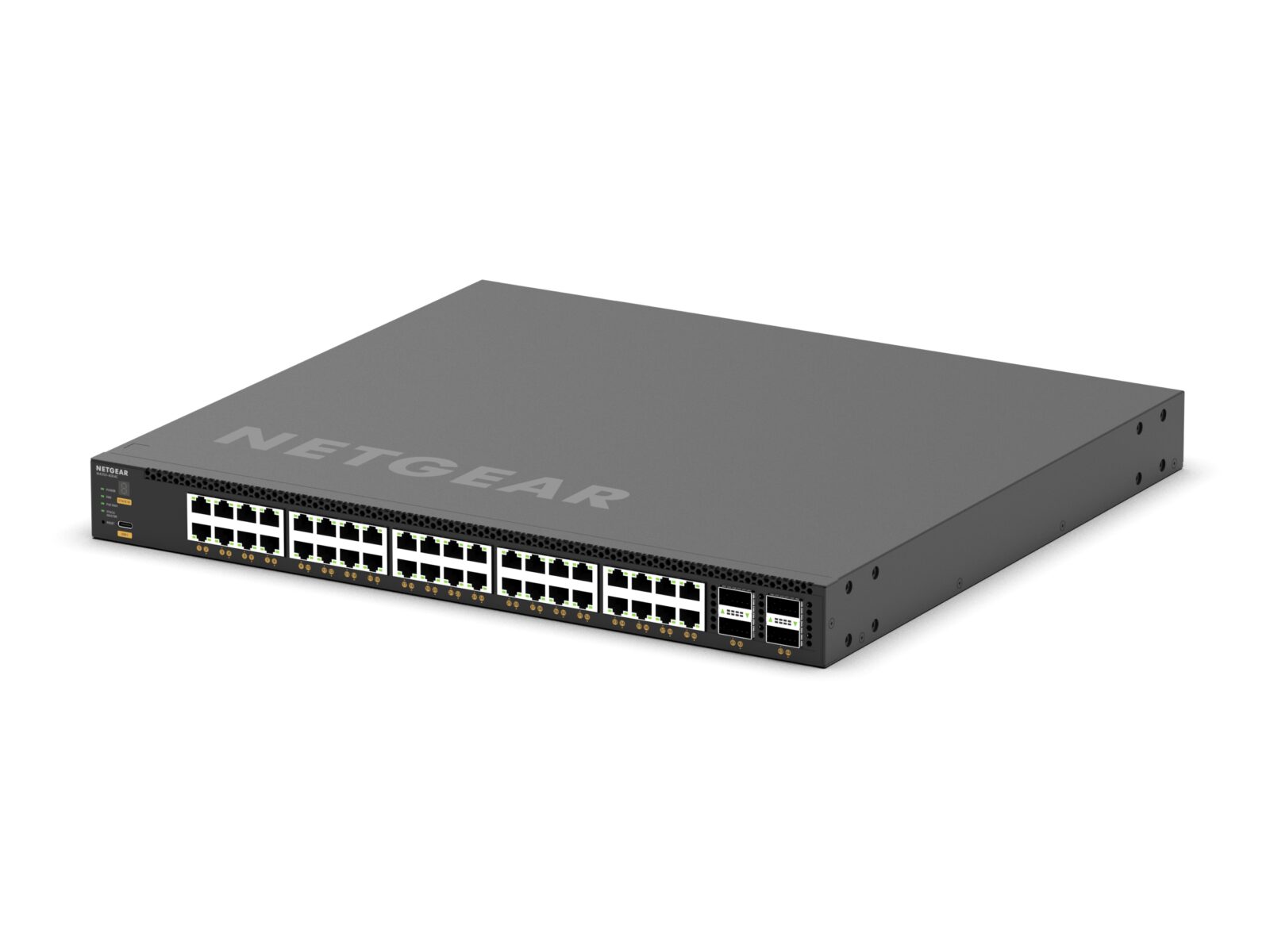

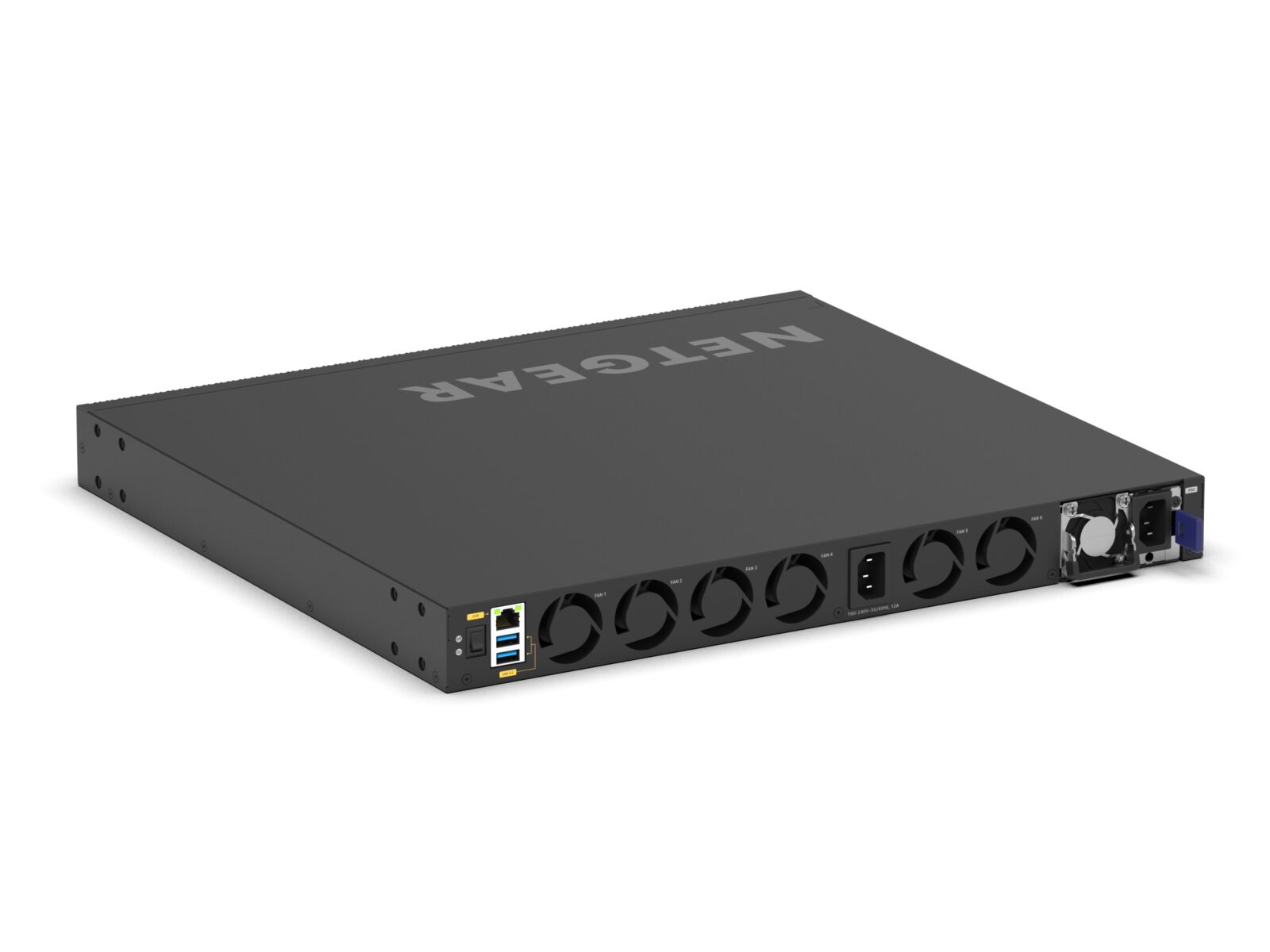

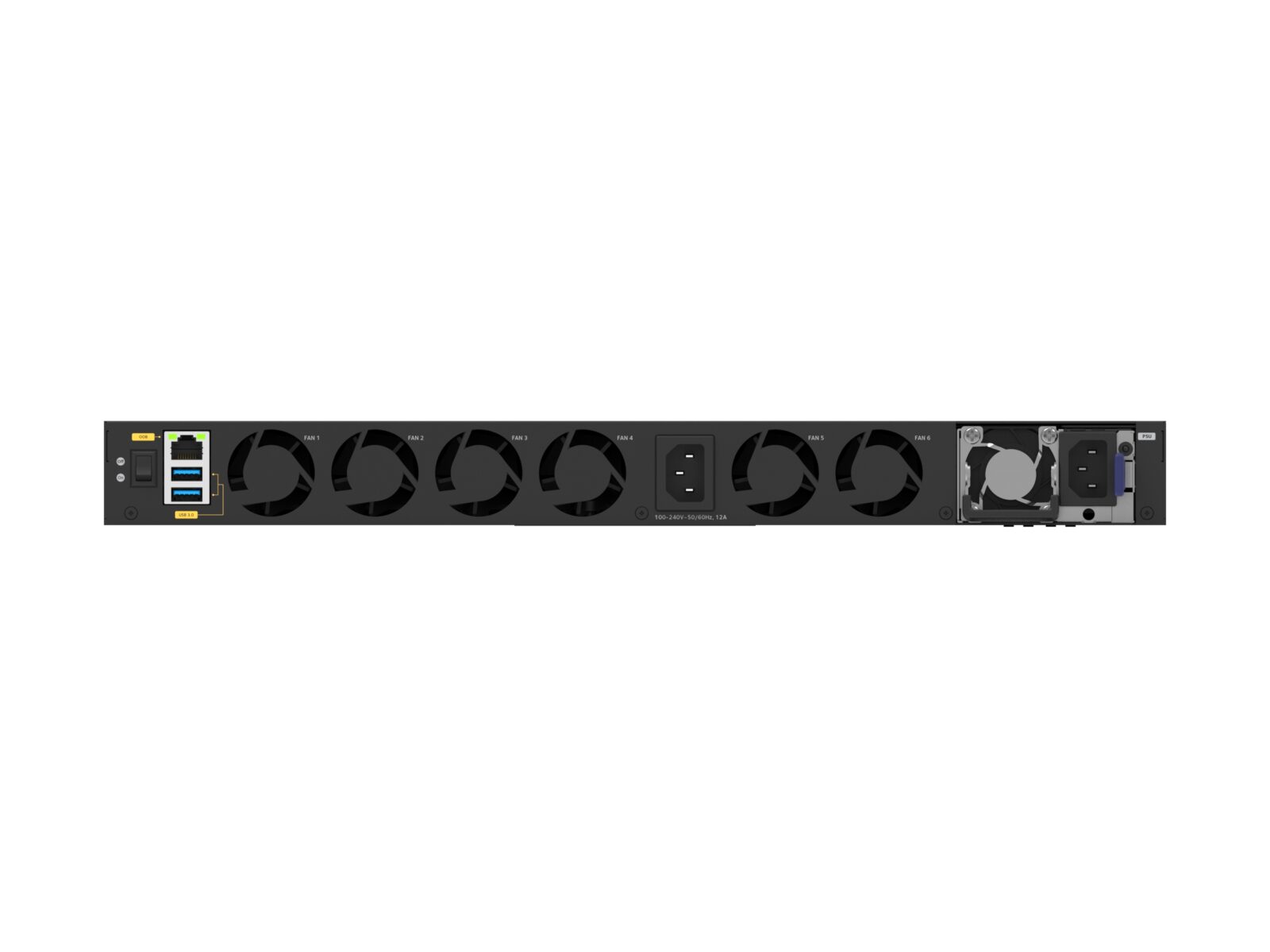

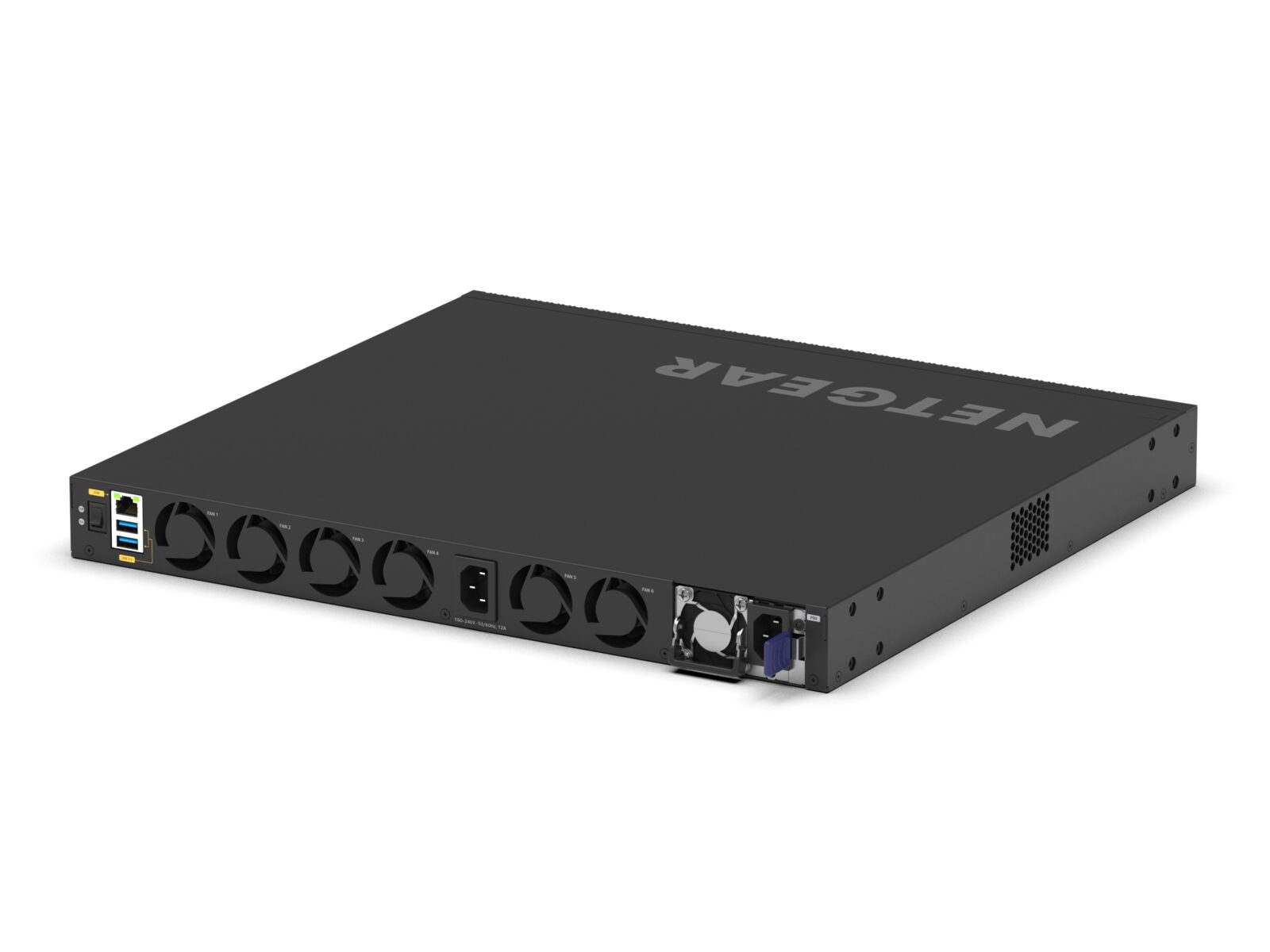

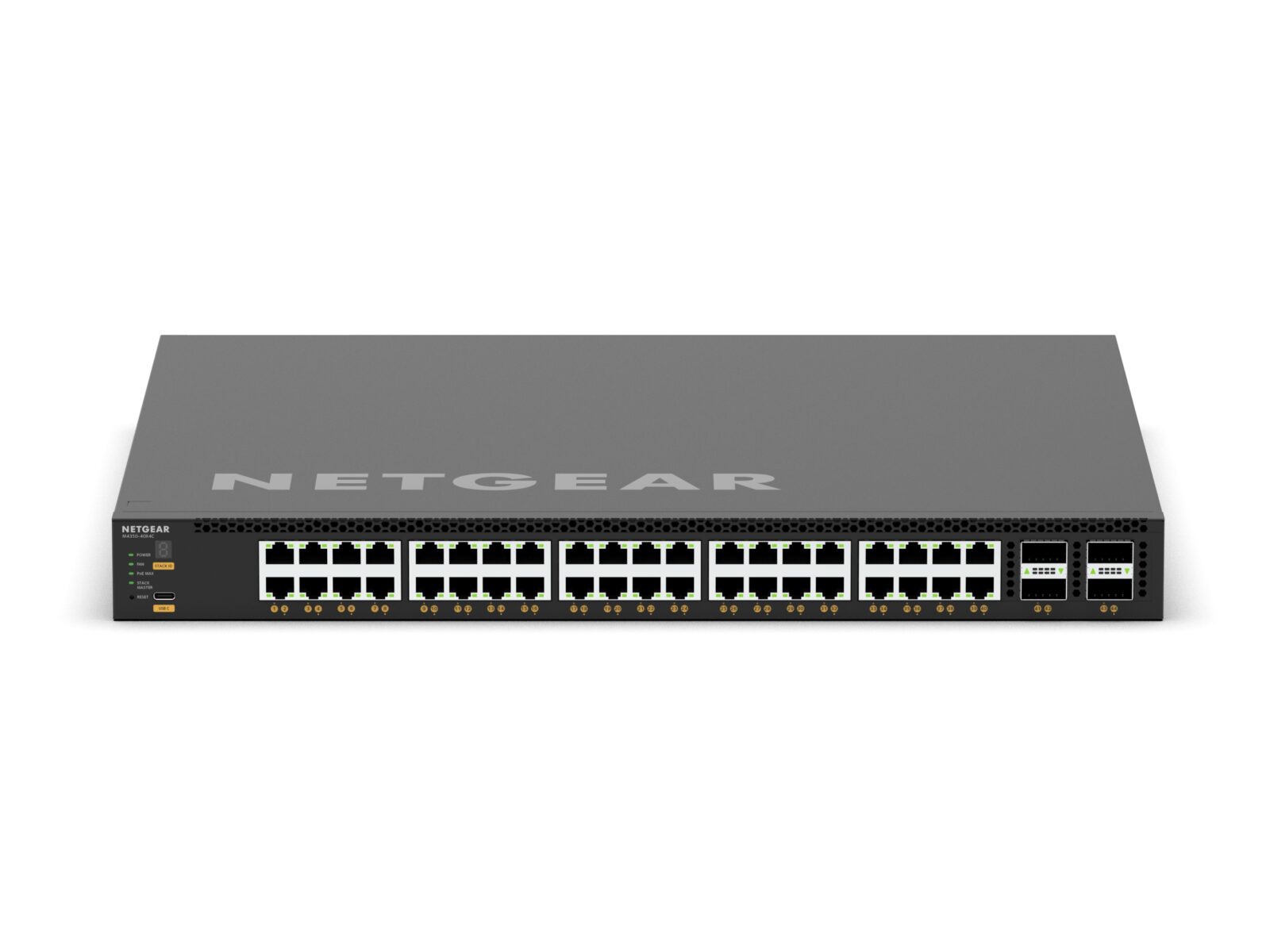

NETGEAR XSM4344C M4350-40X4C Fully Managed 10 Gig PoE++ Switch
Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 24 × 24 × 4 in |
| Number of Ports | |
| UPC | 6.06449E+11 |
| Switch Mounting | |
| Management Type | |
| Supported Speeds | |
| Predominant Port Type | |
| Power over Ethernet | |
| Brand | |
| Warranty | Lifetime |
| Num of PoE Ports | 40 |
$12,000.00
M4350-40X4C Fully Managed Switch (XSM4344C)
40x10G/Multi-Gig PoE++ (196W base, up to 1,676W) and 4xQSFP28 100G Managed Switch
- 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
- 750W internal power supply providing 196W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- TAA compliant SKU is available. Contact Us
WHAT’S INCLUDED
-
M4350-40X4C (XSM4344C)
-
Power cord(s)
-
Console USB Type-C cable
-
Rack-mounting standard bracket set
-
Set of longer brackets for recessed mounting
-
Rubber footpads for tabletop installation
-
Installation guide
WARRANTY
This product is backed by a NETGEAR ProSAFE Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
TECHNICAL DETAILS
-
Width: 440mm
-
Depth: 400mm
-
Height: 43.2mm
-
Weight: 7.76kg (17.11lb)
-
Primary Port Speed: 10 Gigabit / Multi-Gig
-
Number of Ports: 44 (40 x 10G/Multi-Gig PoE++, 4 x 100G QSFP28)
-
PoE Ports / Budget: 40 PoE++ (90W/port), 196W Base, up to 1,676W Budget
-
IGMP Support: Enhanced (NETGEAR IGMP Plus™)
-
Jumbo Frame Support: Yes, up to 12kb
-
AVB Support: Yes, included
-
Acoustics: Quiet Mode 34.1dB@25ºC
-
Power Consumption: With PoE: 413W/1408.33Btu/hr, Without PoE: 200.4W/629.26Btu/hr, Standby without any port connection: 98.8W/310.23Btu/hr
-
PSU Compatible Models
-
APS600Wv3
-
APS1200Wv2
-
APS2000Wv2
-
